Optical Center Finders

180 Skills
Updated Jun 24, 2024

What you'll learn

  • Define and explain the optical center finder
  • Identify the components of a drill guide
  • Use an optical center finder to align a drill bushing with scribed hole location lines

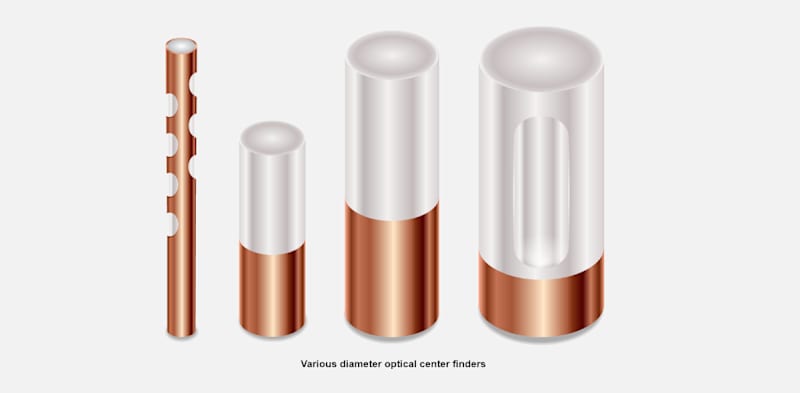

Course DescriptionOptical center finders are used to align a drill bushing with scribed hole location lines on a part. They are very useful when the tolerances for hole location are critical. In this course, you will gain the mastery required to accurately measure with an optical center finder.
