Assembly Preparation for 90 Degree Drilling Project

180 Skills
Updated Jun 15, 2024

What you'll learn

  • Recognize fastener location and identification information on an engineering drawing
  • Explain where to find the tools, fasteners, and other supplies needed to create the assembly
  • Mark fastener locations on the assembly

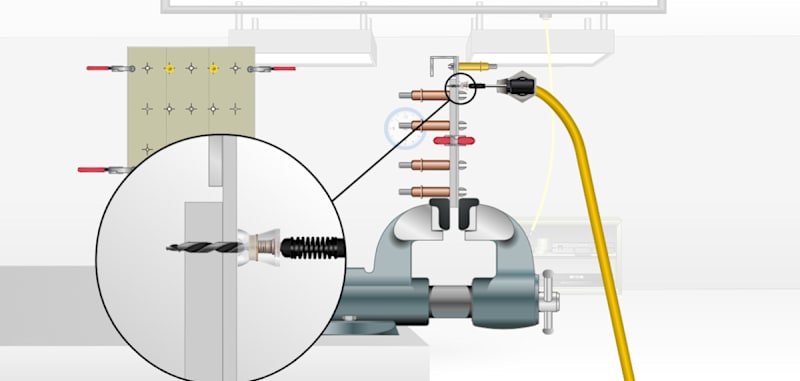

  • Drill pilot holes in the assembly
  • Enlarge the pilot holes to size
  • Chamfer the holes in the assembly
  • Take the assembly apart
  • Deburr holes in the assembly
Course Description

Before the fasteners can be installed in this assembly, the assembly must be constructed and the holes prepared.
